Our Technology
The radio technologies at a glance

Radio Technology

Networked Communication

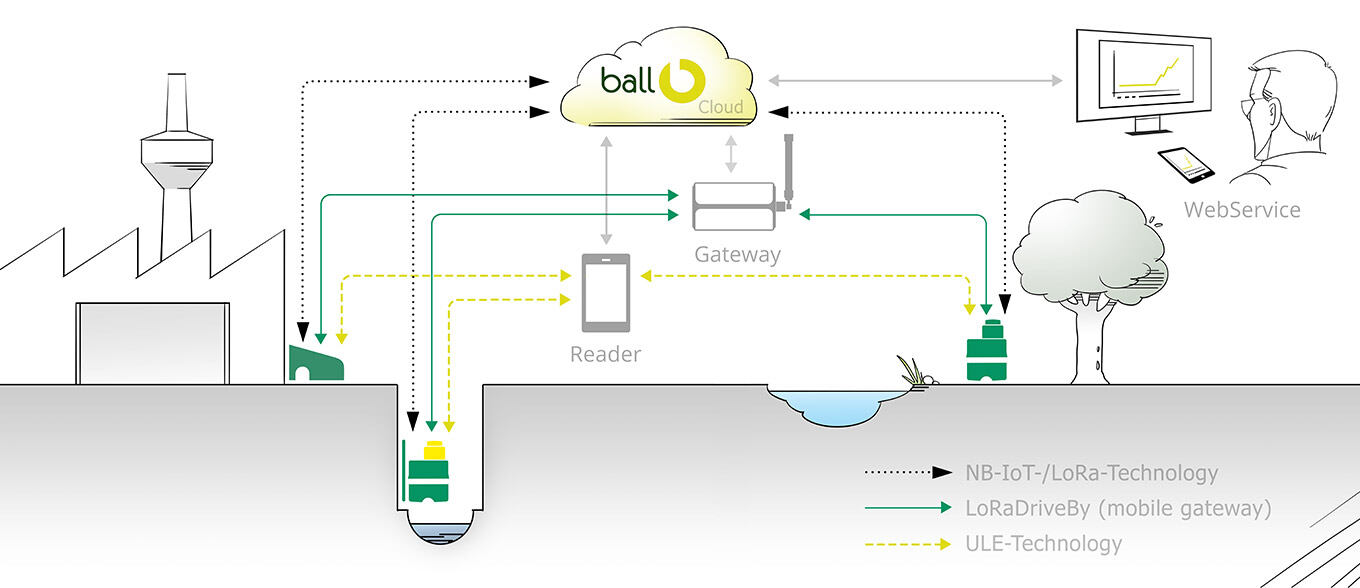

ball-b_Illu_Funk_Uebersicht_1360_588__EN

All ToxProtect models can be operated with either ULE, NB-IoT or LoRaWAN technology. A mixed approach is also possible.

ULE Technology enables the use of the ToxProtect in almost all installation locations independent of an existing mobile network.

With ULE technology, the BatteryBox communicates directly with the reader and data is exchanged between the BatteryBox and the reader. The data exchange is always encrypted! In addition, authentication mechanisms ensure that only the reader can exchange data with its respective BatteryBoxes.

For NB-IoT or LoRaWAN technology, we use the latest mobile radio standards. There is no need to visit the manholes where the ToxProtect boxes are located, as the data is transmitted directly to the cloud. Visit data is sent directly to the WebService on a daily basis. Installation/removal of the ToxProtect and bait management are still carried out via the reader and synchronised with the WebService.

With LoRaDriveBy technology we use a mobile gateway.

If NB-IoT or LoRaWAN is not yet available at the desired installation locations, we recommend a mixed operation of ULE and NB-IoT or LoRaWAN.

TECHNOLOGY ULE NB-IoT LoRaWAN LoRaDriveBy Without technology
Application Infestation detection is identified by reading the data at the manhole with the reader Infestation detection is automatically sent to the ball-b cloud every 8 hours Infestation detection is automatically sent to the ball-b cloud every 8 hours automatic readout via gateway in the vehicle No infestation detection possible
System requirements Independent of mobile phone networks Reliant on Telecom Network Reliant on the LoRaWAN network independent -
Combinable Can be retrofitted or converted to any radio technology at any time
Battery life Ca. 6-12 months Ca. 12-24 months Ca. 12-24 months Ca. 12-24 months -
Data update Every 10 days Several times a day Several times a day variable -
Radio expansion No radio extension necessary Dependent on the network operator Dependent on the LoRa network expansion none -
Accessories Reader 1504 Reader 1504 or ball-b app (own mobile device with Android + NFC reader) Reader 1504 or ball-b app (own mobile device with Android + NFC reader) Reader 1504 or ball-b app (own mobile device with Android + NFC reader)

LoRaDriveBy 		-
Download data sheetPDF Download data sheetPDF Download data sheetPDF
